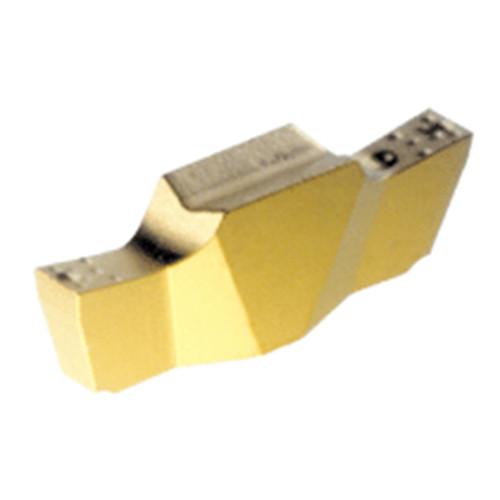

GEPI 1.57-0.15RX IC908
Precision double-ended inserts for internal grooving next to shoulder. Min. bore diameter 11.5 mm.

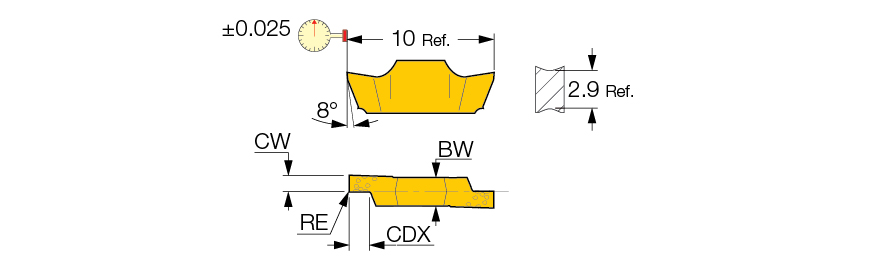

| Cutting Width (CW) | 1.57 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.15 mm | Max. Grooving Feed (fg(max)) | 0.05 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Min. Grooving Feed (fg(min)) | 0.02 mm/rev |
| Overall Length (OAL) | 10 mm | Chip Breaker Type | FG |
| Insert Length (INSL) | 10 mm | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 2 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAlN | Cutting Width Tolerance (+/-) (CWTOL) | 0.02 mm |
| Grade | IC908 | Insert Width (W1) | 1.8 mm |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Int. Grooving | |
Product Features
| Family Description | Precision double-ended inserts for internal grooving next to shoulder. Min. bore diameter 11.5 mm. | FamilyName | GEPI-RX/LX |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance DMIN for internal application=11.5mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0019
Name
Parting Off Indexable Inserts
FamilyName
GEPI-RX/LX
BrandName
Iscar
