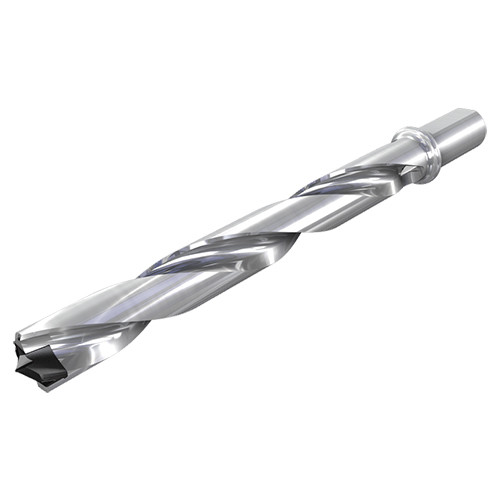

DFN 360-288-32A-8D-IQ
Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 8xD

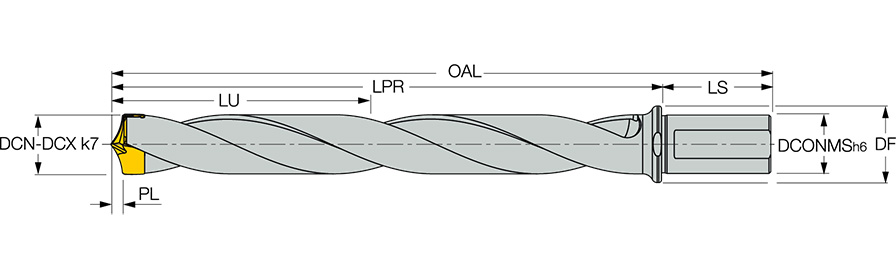

| Cutting Diameter (DC) | 36 mm | Overall Length (OAL) | 389.5 mm |
| Usable Length (LU) | 288 mm | Shank Length (LS) | 60 mm |
| Length Group | 8xD | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Measurement Type | Metric |
| Application | | Drilling | | Master Insert Identification (MIID) | HFP 360 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 8.15 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Insert Seat Size Code (SSC) | 36.0 | Flange Diameter (DF) | 42 mm |
| Cutting Diameter Minimum (DCN) | 36 mm | Body Diameter Reduced (BDRED) | 42 mm |
| Cutting Diameter Maximum (DCX) | 36.9 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 329.5 mm | Unit | M |
| Functional Length (LF) | 321.35 mm |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 8xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
2.0700
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
