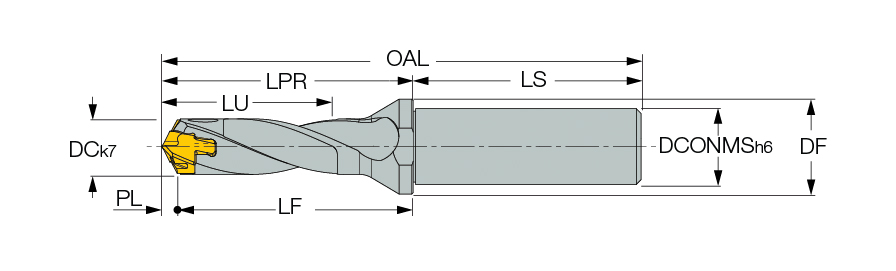

| Cutting Diameter (DC) | 0.531″ | Shank Length (LS) | 1.89″ |
| Usable Length (LU) | 1.675″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 135 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.081″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Body Material | Steel |
| Insert Seat Size Code (SSC) | 13.0 | Flange Diameter (DF) | 0.79″ |
| Cutting Diameter Minimum (DCN) | 0.531″ | Decimal Equivalent | 0.531″ |
| Cutting Diameter Maximum (DCX) | 0.55″ | Body Diameter Reduced (BDRED) | 0.79″ |
| Protruding Length (LPR) | 2.29″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 2.193″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 4.18″ | Unit | I |
Product Features

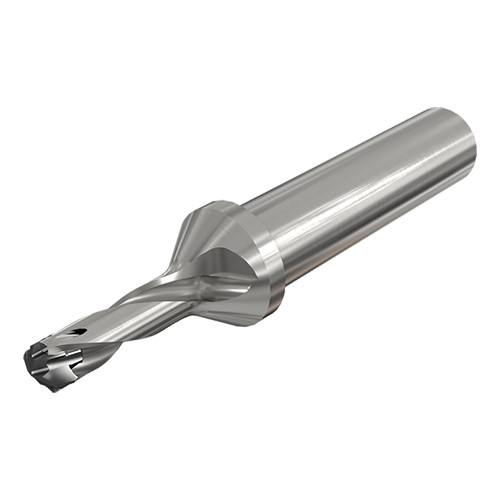

| Family Description | SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.3197
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
