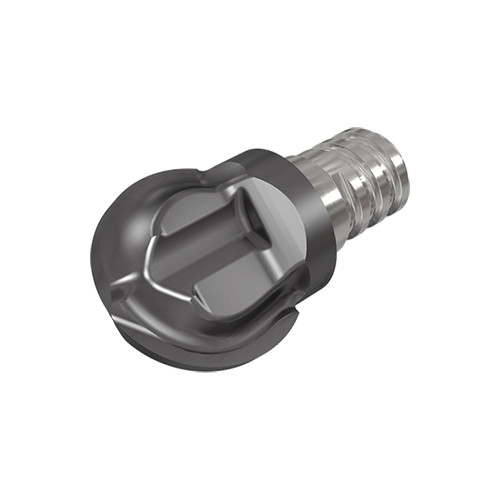

MM HBR200-2T10 IC908
MULTI-MASTER, high accuracy (h7 milling head diameter), may be used for both roughing and precision finishing applications. Center cutting, 240° spherical cutting profile. Recommended for finishing and may be used on hardened steel
| Application | | Profiling | | Grade | IC908 |

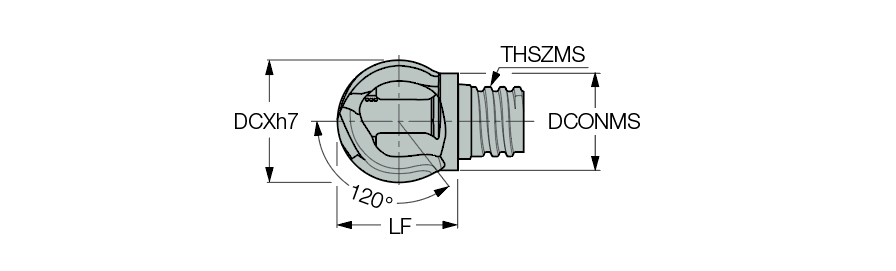

| Cutting Diameter (DC) | 20 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Tool Type | Solid ball nose |
| Connection Diameter Machine Side (DCONMS) | 15.2 mm | Body Material | Carbide |
| Functional Length (LF) | 18.4 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 30.15 mm | Unit | M |
Product Features
| Family Description | MULTI-MASTER, high accuracy (h7 milling head diameter), may be used for both roughing and precision finishing applications. Center cutting, 240° spherical cutting profile. Recommended for finishing and may be used on hardened steel | FamilyName | MM HBR |

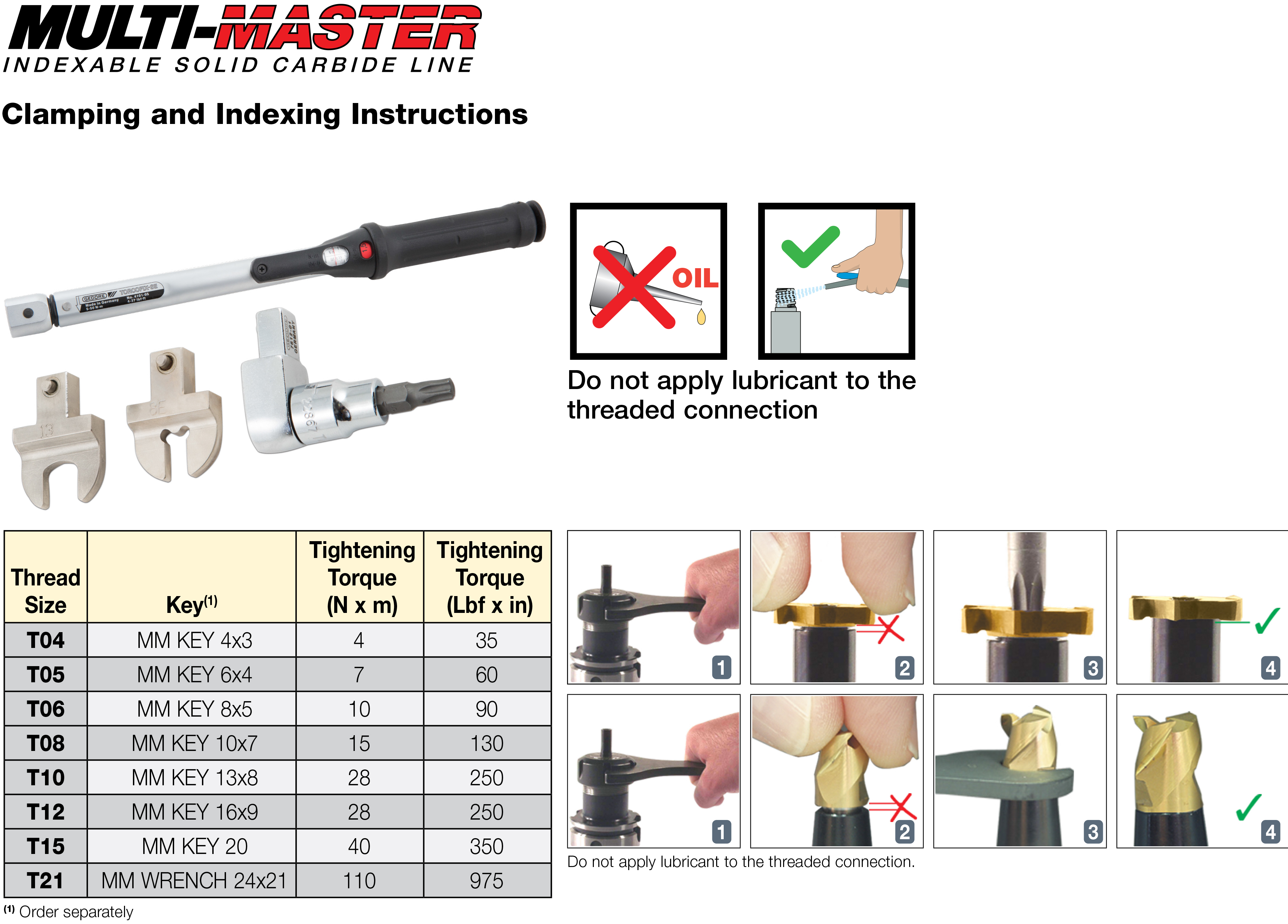

| Remarks | For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0460
Name
Solid End Mill Heads
FamilyName
MM HBR
BrandName
Iscar
