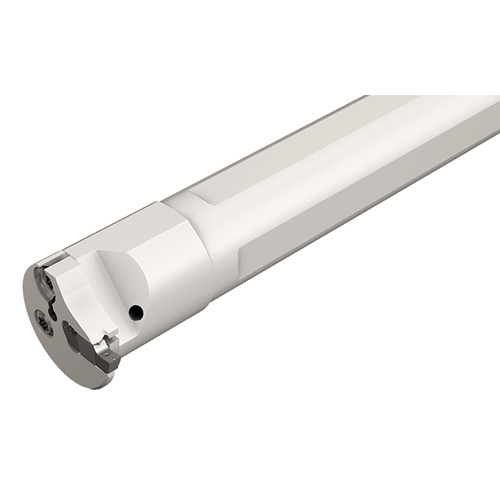

GHAIR 32-25
Boring bars, for GEAIR/L adapters. Used for internal grooving, turning and threading applications.

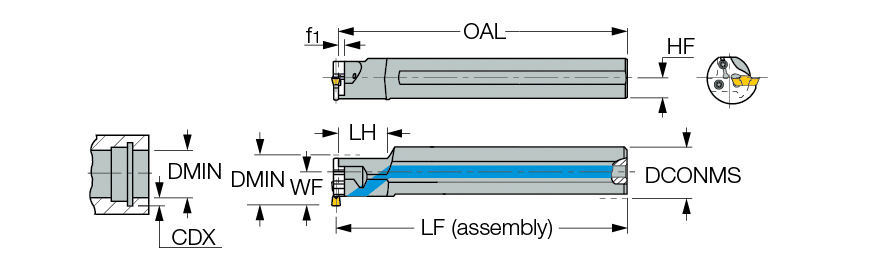

| Minimum Bore Diameter (DMIN) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 2.4 mm | Tool Type | Round Shanks |
| Head Length (LH) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
Product Features
| Family Description | Boring bars, for GEAIR/L adapters. Used for internal grooving, turning and threading applications. | FamilyName | GHAIR/L-GE |
| Remarks | For DMIN & CDX refer to GEAIR/L adapters | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.0290
Name
Groove/Turn Indexable Holders
FamilyName
GHAIR/L-GE
BrandName
Iscar
