PHSR 12.7-2.4

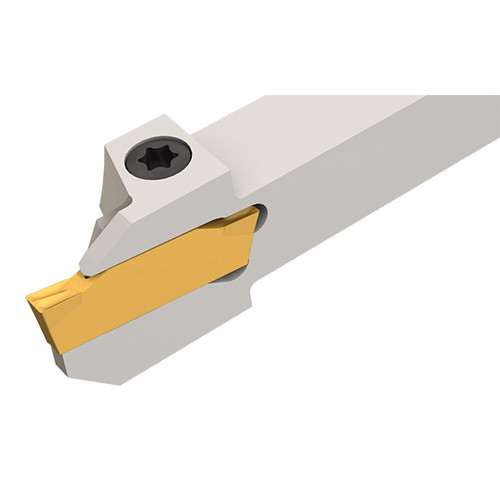

External machining holders for Swiss-type and automatic machines for GDMW/GDMY inserts

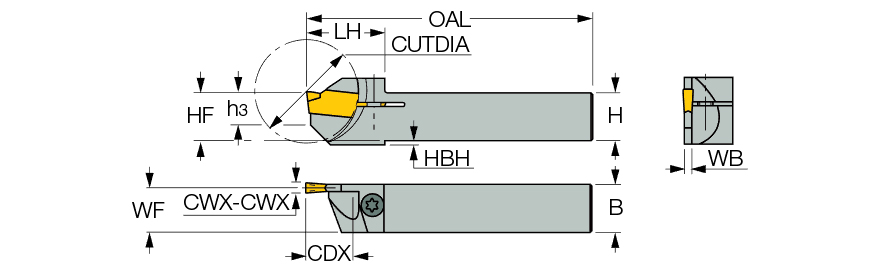

| Cutting Width Minimum (CWN) | 0.094″ | Overall Length (OAL) | 5.9″ |
| Cutting Width Maximum (CWX) | 1/8″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.46″ | Measurement Type | Inch |
| Head Length (LH) | 0.79″ | Unit | I |
Product Features
| Family Description | External machining holders for Swiss-type and automatic machines for GDMW/GDMY inserts | FamilyName | PHSR/L |

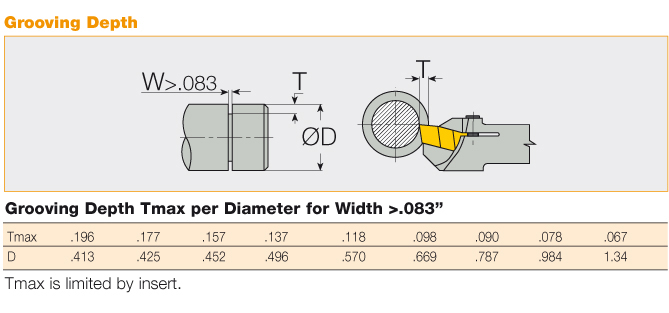

| Remarks | CDX=Max depth capacity, Click More info to see the chart | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4542
Name
Groove/Turn Indexable Holders
FamilyName
PHSR/L
BrandName
Iscar
