TGTL 2020-4-IQ
Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life.

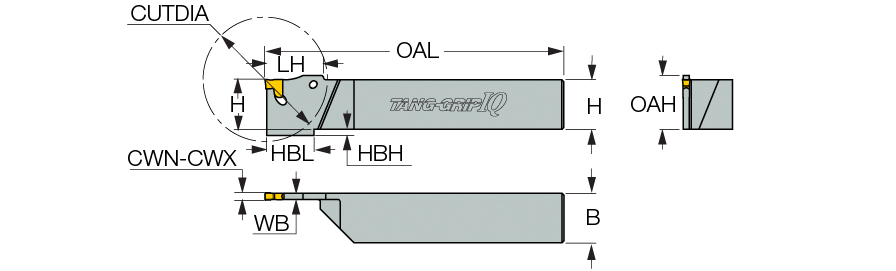

| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Body Width (WB) | 3.4 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 3.7 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 57 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 120.5 mm | Measurement Type | Metric |
| Head Length (LH) | 23.4 mm | Tool Assembly Length (LTA) | 45.64 mm |
| Overall Height (OAH) | 21.7 mm | Unit | M |
Product Features
| Family Description | Integral shank tools with a very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting interrupted cuts. Excellent tool and pocket life. | FamilyName | TGTR/L-IQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.3210
Name
Parting Off Indexable Holders
FamilyName
TGTR/L-IQ
BrandName
Iscar
