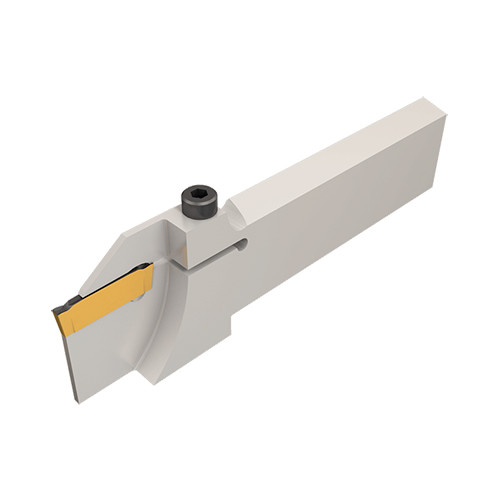

DGFHL 32B-2D50
Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.

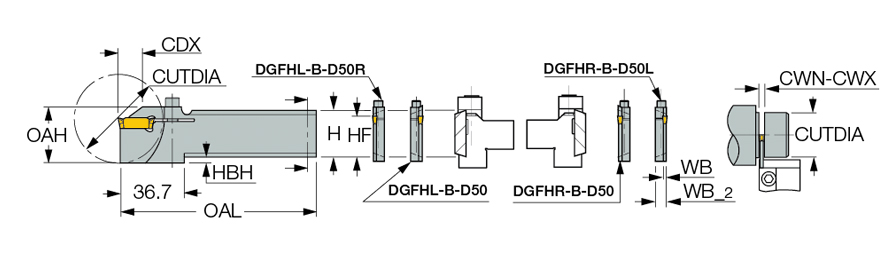

| Shank Height (H) | 32 mm | Body Material | Steel |
| Body Width (WB) | 1.6 mm | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 1.9 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 50 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 18 mm | Body Width_2 (WB_2) | 8 mm |
| Overall Height (OAH) | 31.5 mm | Tool Assembly Length (LTA) | 54 mm |
| Functional Length (LF) | 120 mm | Unit | M |
| Application | | Ext. Grooving | Parting | |
Product Features
| Family Description | Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts. | FamilyName | DGFHR/L-B-D..(R/L) |
| Remarks | Insert (double sided) limit is CDX=18 mm, If deeper penetration is required the insert should be changed to a single-ended insert DGNM type. DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2060
Name
Parting Off Indexable Holders
FamilyName
DGFHR/L-B-D..(R/L)
BrandName
Iscar
