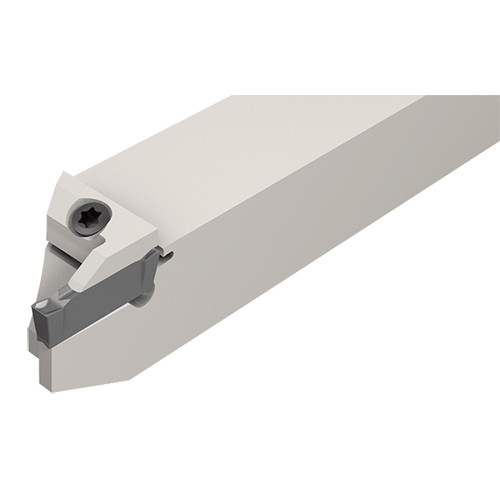

DGTR 9.5B-2D20SH
Parting and grooving short head tools for CNC and Swiss automatics.

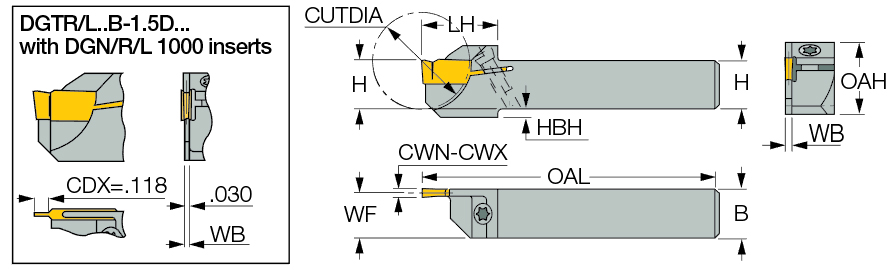

| Shank Height (H) | 3/8″ | Application | | Ext. Grooving | Parting | |
| Shank Width (B) | 3/8″ | Body Material | Steel |
| Body Width (WB) | 0.063″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.075″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.79″ |
| Cutting Width Maximum (CWX) | 0.1″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 4.7″ | Measurement Type | Inch |
| Head Length (LH) | 3/4″ | Tool Assembly Length (LTA) | 1.14″ |
| Overall Height (OAH) | 0.62″ | Unit | I |
Product Features
| Family Description | Parting and grooving short head tools for CNC and Swiss automatics. | FamilyName | DGTR/L-B-D-SH |
| Remarks | DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3. For insert depth capacity table and modification instructions for the 2 and 3 holder pockets, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2646
Name
Parting Off Indexable Holders
FamilyName
DGTR/L-B-D-SH
BrandName
Iscar
Related Documentation

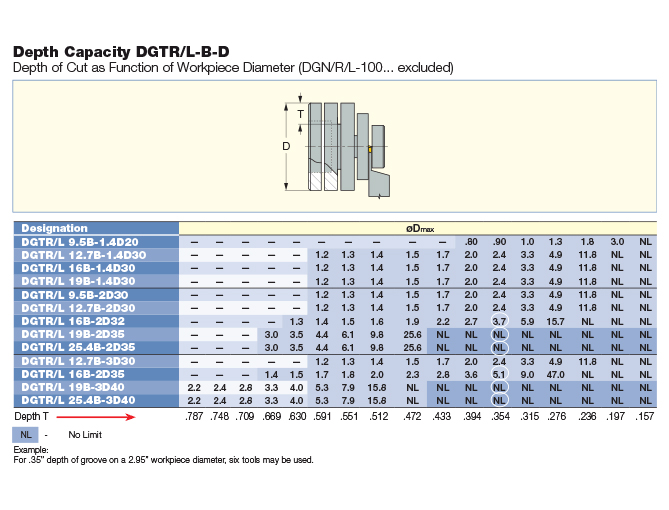

DG..1.0 insert can be mounted into pocket sizes 2 and 3. For DGN/R/L 1 mm inserts' depth capacity table and modification instructions for the holder pocket, see below.
