EPGT 03X102-F1P IC908

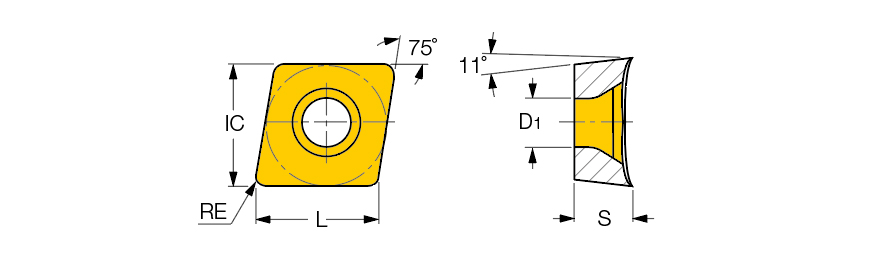

75° rhombic 11° flank inserts for very low finish turning conditions of steel. Low cutting forces due to sharp ground cutting edge and a positive rake angle.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Int. 75° Diamond 100° Approach | | Min D.O.C. | 0.1 mm |
| Insert Style | EPGT | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.02 mm/rev |
| Insert Size | 03X102 | Max. Turning Feed (ft(max)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 3.7 mm | Clearance Angle Major (AN) | 10 Degrees |
| Insert Thickness (S) | 1.39 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3.57 mm | Chip Breaker Type | F1P |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Unit | M |
| Fixing Hole Diameter (D1) | 1.9 mm |
Product Features
| Family Description | 75° rhombic 11° flank inserts for very low finish turning conditions of steel. Low cutting forces due to sharp ground cutting edge and a positive rake angle. | FamilyName | EPGT-F1P |
| COO | Japan | BrandName | Iscar |
Shipping Info
Weight per item
0.0014
Name
Turning Indexable Inserts
FamilyName
EPGT-F1P
BrandName
Iscar
