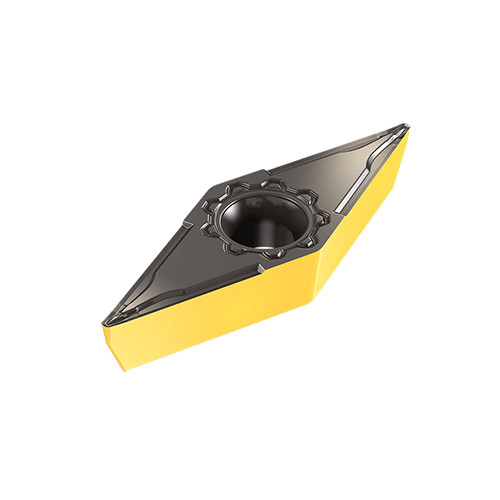

VCMT 160408-F3P IC8250
35° rhombic 7° flank inserts, for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life.
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Positive Inserts |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | Y Axis for Swiss Type Machines | | Min D.O.C. | 0.14 mm |

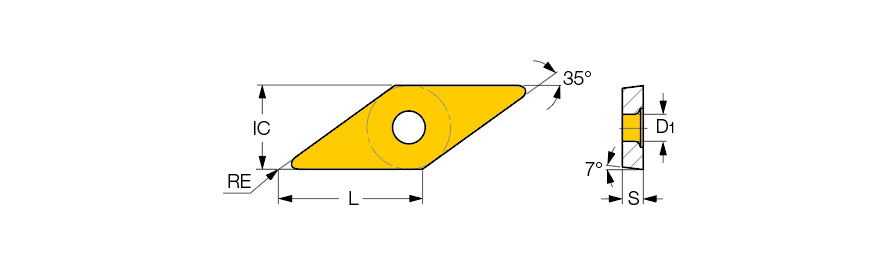

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 1.8 mm |
| Insert Size | 332-F3 | Min. Turning Feed (ft(min)) | 0.07 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.29 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Chip Breaker Type | F3P |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
| Grade | IC8250 | Unit | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
Product Features
| Family Description | 35° rhombic 7° flank inserts, for semi-finishing & finishing of steel. Low cutting forces due to sharp cutting edge and a positive rake angle, providing very reliable performance and excellent tool life. | FamilyName | VCMT-F3P |
| Remarks | For dimensions and tolerances, see more info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0107
Name
Turning Indexable Inserts
FamilyName
VCMT-F3P
BrandName
Iscar
