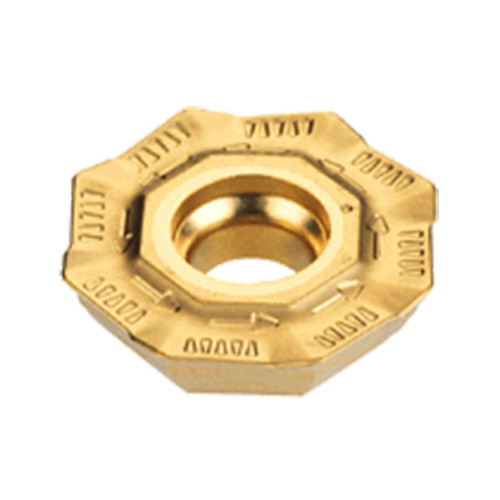

OFMT 07T3-AEN IC328
HELIOCTO, Octagonal milling inserts for general use.

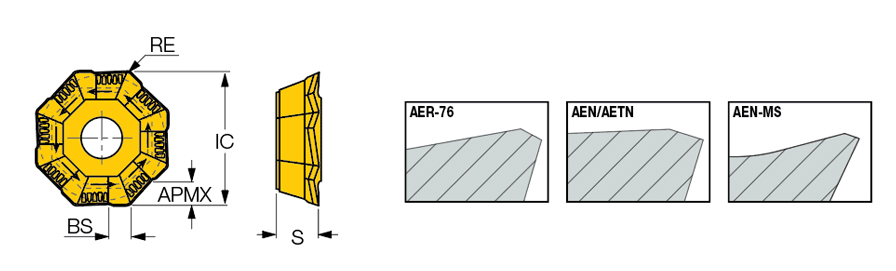

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Helical Interpolation | Rampdown | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.6 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 3.9 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Insert Thickness (S) | 4.54 mm | Number of Cutting Edges | 8 |
| Insert Included Angle (EPSR) | 135 Degrees | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Unit | M |
Product Features
| Family Description | HELIOCTO, Octagonal milling inserts for general use. | FamilyName | OFMT 07 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0139
Name
Milling Indexable Inserts
FamilyName
OFMT 07
BrandName
Iscar
