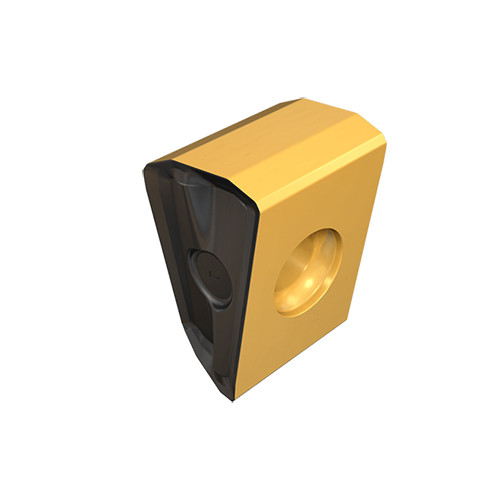

T465 LNHT 2212-ZNTR IC5400

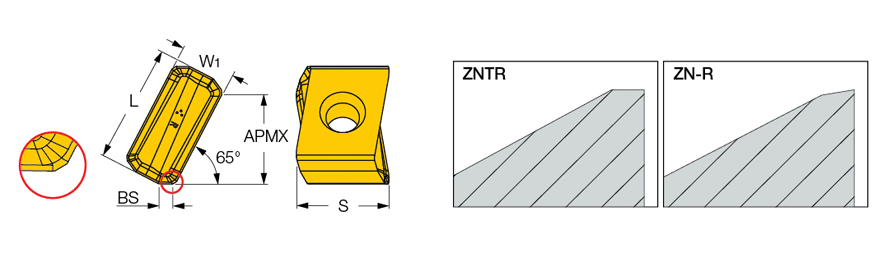

HELITANG T465 Line, tangentially clamped inserts with 4 cutting edges. Used on 65° cutters, for up to 19 mm depth of cut. The insert has a positive rake and axial angles and a 2.5 mm flat wiper for high surface finish.
| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.45 mm/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 25.39 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 19 mm | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 12 mm | Minimum Feed per Tooth (fz(min)) | 0.25 mm/tooth |
| Insert Thickness (S) | 19.8 mm | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 2.5 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC5400 |
Product Features
| Family Description | HELITANG T465 Line, tangentially clamped inserts with 4 cutting edges. Used on 65° cutters, for up to 19 mm depth of cut. The insert has a positive rake and axial angles and a 2.5 mm flat wiper for high surface finish. | FamilyName | T465 LNHT/LNMT 2212 |
| Remarks | LNMT - utility inserts, LNHT-precision inserts. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0594
Name
Milling Indexable Inserts
FamilyName
T465 LNHT/LNMT 2212
BrandName
Iscar
