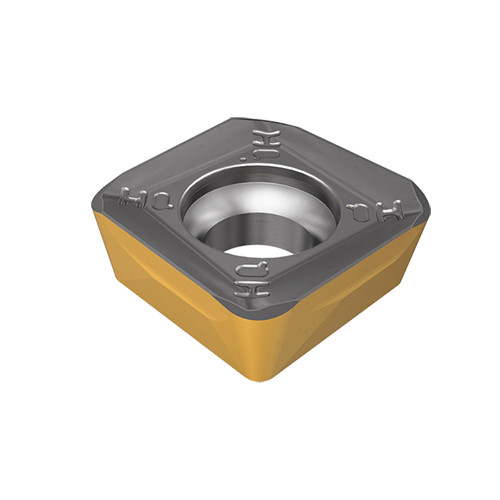

SPMT 100416R-HQ-M IC830
HELIQUAD Square positive inserts for right-hand tools for general use.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |

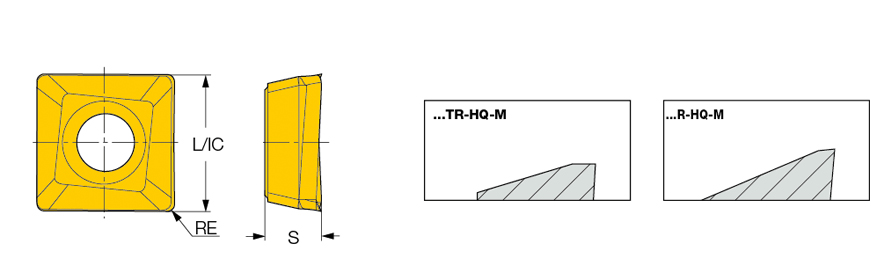

| Insert Length (INSL) | 10.2 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.6 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Thickness (S) | 4.23 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | HELIQUAD Square positive inserts for right-hand tools for general use. | FamilyName | SPMT-HQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0048
Name
Milling Indexable Inserts
FamilyName
SPMT-HQ
BrandName
Iscar
