H690 EWN D20-3-C20-R04

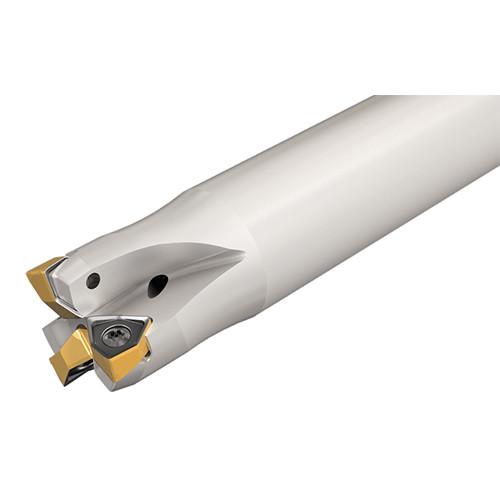

90° endmills carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges.

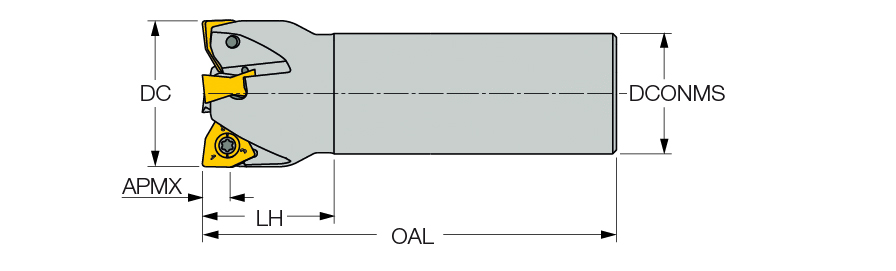

| Cutting Diameter (DC/DCX) | 20 mm | Head Length (LH) | 26 mm |
| Cutting Diameter (DC) | 20 mm | Functional Length (LF) | 110 mm |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 110 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Measurement Type | Metric |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |

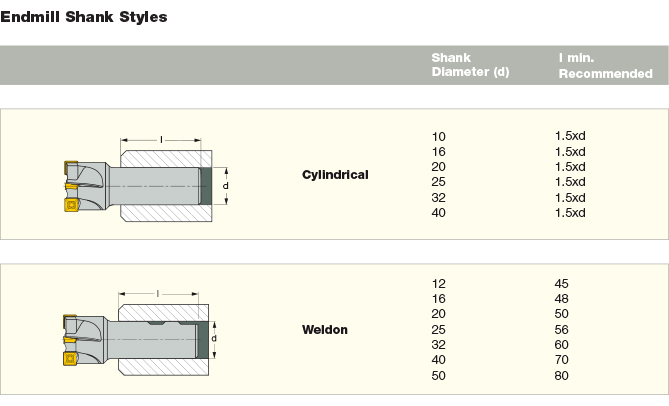

| Connection Diameter Machine Side (DCONMS) | 20 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | H690 WNMU 0404-PNTR | Unit | M |
Product Features
| Family Description | 90° endmills carrying H690 WNMU 0403 double-sided trigonal inserts with 6 helical cutting edges. | FamilyName | H690 EWN-04 |
| Remarks | For adaptation, click on More Info. Insert clamping screw must be lubricated every indexing | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2830
Name
Indexable End Mills
FamilyName
H690 EWN-04
BrandName
Iscar
