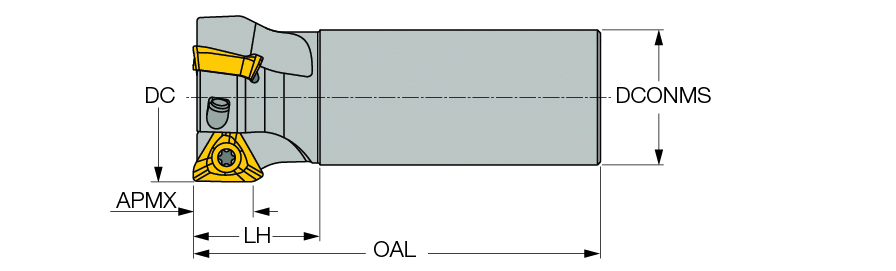

| Cutting Diameter (DC/DCX) | 25 mm | Functional Length (LF) | 63 mm |
| Cutting Diameter (DC) | 25 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 95 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |

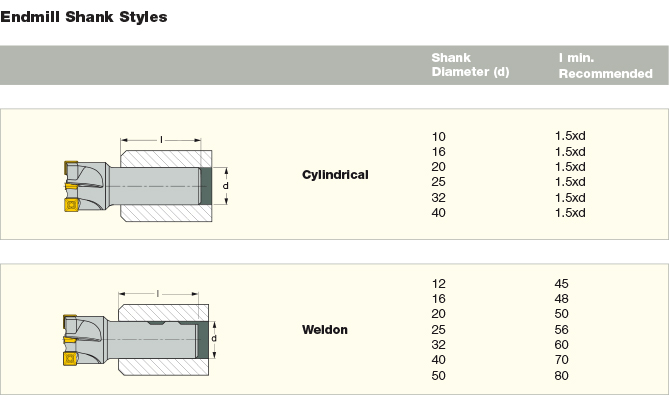

| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 2.9 Degrees | Measurement Type | Metric |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | HM390 TPKT 100304PDR | Unit | M |
| Head Length (LH) | 25 mm |
Product Features

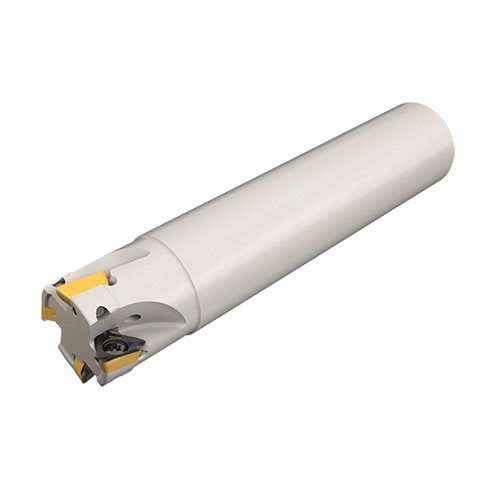

| Family Description | 90° endmills carrying HM390 TPKT 1003 triangular inserts with 3 helical cutting edges. | FamilyName | HM390 ETP-10 |
| Remarks | For inserts with a corner radius larger than 1.6mm, tools must be modified by rounding the corners of the tool body according to the formula: R body'scorner = R insert + 0.5 mm. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4140
Name
Indexable End Mills
FamilyName
HM390 ETP-10
BrandName
Iscar
