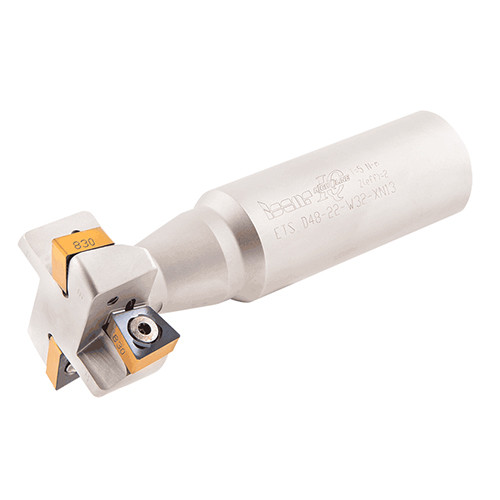

ETS D48-22-W32-XN13
T-slot endmills carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges.

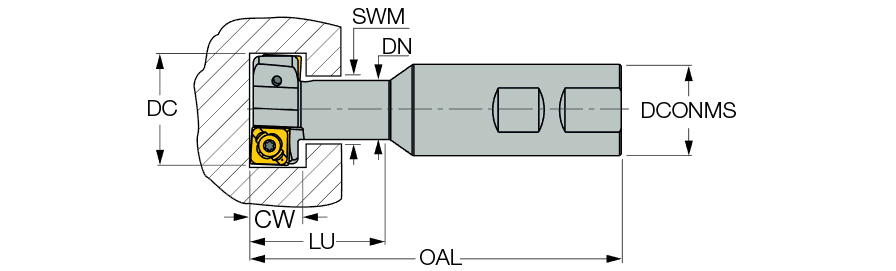

| Cutting Diameter (DC) | 48 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 9.8 mm | Tool Type | Double-sided slotting cutters |
| Flute Count (NOF) | 4 | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Cutting Item Count (CICT) | 4 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Functional Length (LF) | 94 mm |
| Overall Length (OAL) | 130 mm | Master Insert Identification (MIID) | XNMU 130608PNTN |
| Usable Length (LU) | 58 mm | Connection Code Machine Side (CCMS) | Weldon |
| Shank Type | Weldon | Unit | M |
| Application | | Bottom Shouldering | Side Slotting | T Slotting | | Neck Diameter (DN) | 27 mm |
Product Features
| Family Description | T-slot endmills carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges. | FamilyName | ETS-XN13 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.8220
Name
Disc w/Shank Indexable Slotting Cutters
FamilyName
ETS-XN13
BrandName
Iscar
